应用领域与百科/Purpose and introduction：

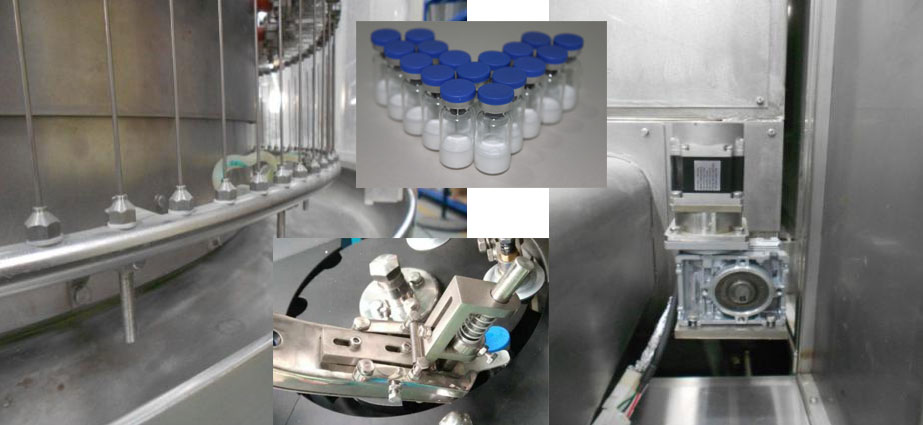

NQGF型西林瓶粉针洗烘灌装轧盖标贴纸联合线 由QCL类别落地式超音波波洗瓶机、AQMR隧道口式暖风间歇消毒恒温干燥箱、NQFGX类别精机螺旋轴粉剂灌装机、NQ-50轧盖机、NQWTB-120标贴纸发电机成，也可电脑单机的使用。比较合适于7-25ml规格参数的西林瓶粉针的制作。能完全喷淋头放水、超音波波粗洗、瓶表面水洗、瓶壁上间断三次间歇水洗、一场吹气、一场丰富水洗、间断三次吹气、瓶表面吹气、拆洗、提前预热、烘箱消毒去热原、散热、灌装、加塞、轧盖、标贴纸等二十几道工艺流程。NLGF schering bottles booster injection wash baked repackaging rolling cover labeling line consists of QCL series vertical ultrasonic bottle washer, ASMR tunnel type hot air circulation oven. NFFGX series CNC screw powder filling machine, NF-50 rolling machine, NFWTB-120 labeling machine, and also can be used stand-alone. Suitable for 7 to 25 ml specification schering bottles of water production. Can finish the spray water injection, ultrasonic thick bottle washing, the outer wall of water flushing, bottle wall continuous secondary circulating water flushing, a blowing, a fresh water rinse, two consecutive bottle blowing, blowing the outer wall, preheating and drying sterilization to pyrogen, cooling, packaging, gasser, cover, labeling and so on more than 20 procedures.

亮点/characteristic：

◆洗瓶机利用机械化手夹瓶，实用不同技术参数的西林瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of schering bottles;◆洗瓶用到气水喷针往返跟进添加原则，清洁功效好，省下生物质能。并下设针架防震动控制系统，挺高喷针添加瓶盖的准确无误度，减轻断针的现象發生；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶一部分热气滤油器、喷针完整自由分开单独进行，不要了交差废弃物，复合GMP制约特殊要求；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶螺母前另装确保块，有确保螺母，提高碎瓶帮助；Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottle;◆洗瓶机出瓶所采用建筑体进口报关同样带，接连拨瓶块输送管西林瓶，电脑运行相对稳定可以信赖；Pieces out of the bottle inside the whole import synchronous belt, the connection dial the bottle conveying schering bottles, operation is stable and reliable;◆真空烘箱应用制热重复加熱，平均温度粗糙，能源管理；Oven adopts hot air circulation heating, temperature uniformity, energy saving;◆烘烤箱具有防突发无电保護功能模块。电脑运行安全性高；Mixer oven has suddenly loses power protection function. Run security;◆真空烘箱可配循环法水冷散热器部件，不衰减房子功率，增多房子的气体压力不平稳的风险分析下滑目的好；Mixer oven can match circulating water cooling device, not loss room air volume, reduce the risk of differential pressure imbalance in room cooling effect is good.◆恒温干燥箱可配压值智能不均衡性量改善模式以减少屋内和恒温干燥箱的压值不不均衡性量发生的高溫段位移，装罐间洗烘间室内温度升职业技术一个系列产品的话题；Mixer automatic oven can match differential pressure balance control system to reduce the room and high temperature oven pressure difference caused by the imbalance of period of migration, filling between wash between baking temperature and so on a series of problems;◆烤箱例如DOP验测usb接口(例如风压差、风压、污物离子验测口)；Mixer oven with DOP test interface (including wind pressure, wind speed, dust particle detection);◆恒温干燥箱降温段可带同屏在线灭菌处理系统(FDA特选)；Mixer oven cooling segment with the function of sterilization (FDA selected);◆烤箱网带可带超声清洁工作涉及CIP线清洁工作模式；Type mixer oven mesh belt with ultrasound scanning CIP online cleaning system;◆恒温干燥箱内腔室可使用全地方、多坡度各类高压水冲泡；In pieces inside the oven chamber can be all-round, multi-angle high-pressure water flushing;◆分开包装机选取全国更发达的装修设计经营理念，具有着极线速度，同时还分瓶准确的，换个型号规格件不方便；Mixer racking machine adopts the most advanced design concept, high speed, and bottles of accurate, replacement of a convenient;◆预包装机进行聊天交流伺服同步电机同步电机驱动器安装预包装螺旋轴旋转视频，装量精密；Mixer racking machine adopts ac servo motor drive the repackaging screw rotation, the load accurately;◆预包装机运用装量的改变直观在触屏屏上实现了；Mixer packer adopts the load adjustment directly on a touch screen;◆全自动灌装机机要选配百级再循环式层流罩；Mixer packer optional circulating laminar flow hood best level;◆预包装机无瓶停下预包装，无瓶没加塞功效。Racking machine without stop packing bottle, no bottle no stoppered function.◆整线应用PLC总管理、变頻器、触控屏管理技术设备，正常运作相对稳定耐用。触控屏可呈现各手机单机的正常运作程序，各管理点的进水管、气压、气压、温等呈现，各按钮程序和故章呈现，故章自身珍断和故章概述及在排除手段。使全部种植方式时候提高自动式化管理，联线兼备电气平横提升装置，确认种植方式均衡性耐用。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. Make the whole production process automation control, on-line has the automatic balancing device, ensure production equilibrium is reliable.会根据消费者的必须 ，还可供选择装配：According to the needs of customers, but also available for selection:◆西门子PLC、德力西、三凌、台达等产品品牌掌控系统的；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气压力差、水溫及超声心动图波硬度、尘土激光束、风压在线视频查重、报警信号、日志、打印出整体；Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system;◆ORABS、CRABS、无菌操作防晒隔离霜器整体。ORABS, CRABS, aseptic isolator system.

技木性能参数：/technical parameters

主要参数 model

出产能利用率力production capacity

洗瓶合适率Washing bottle percent of pass

洗瓶开裂率Washing bottle breakage

灭菌方法室温sterilizing temperature

散装出现偏差的原因The repackaging of error

加塞适合率Gasser percent of pass

暖空气层流净化度Laminar air cleanliness

真空泵抽速Vacuum pumping speed

电解电容量 capacitance

电power supply

总耗电量Total transmission energy

形状尺寸规格boundary dimension

7-25ML国家行业标准西林瓶 7-25ML GBvial

300瓶pcs/分min ～600瓶pcs/分min

≥99%

≤0.1%

300℃-350℃

≤±3%(0.1-10h)

≥99%

100级100c

25m3/H(外配)100cbm/H ～50m3/H(外配)100cbm/H

96kw～235.5kw

380v,50HZ

约 8200KG

约 2000×1750×2370mm
