不同的用途与简绍：/Purpose and introduction

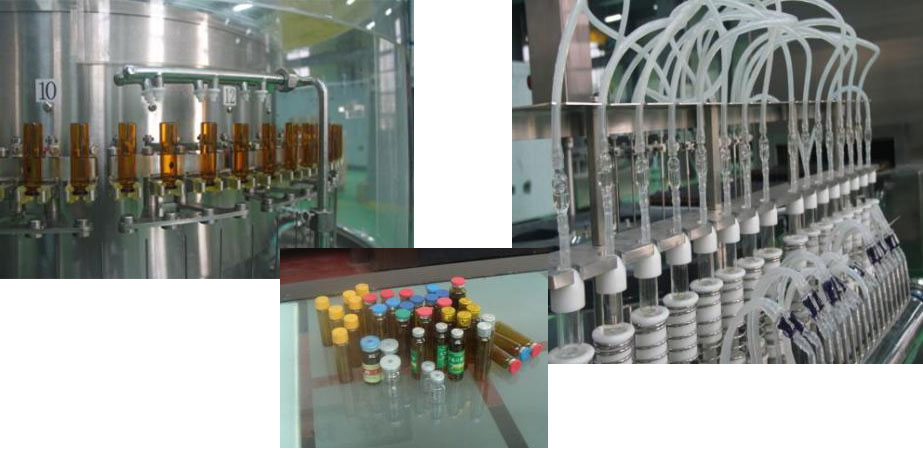

冲剂液洗烘灌轧连动线由双面多普勒彩超心动图波洗瓶机、地下隧道式制热 间歇灭菌处理处理真空烘箱、冲剂液装灌轧盖机等构成，适用于 5-30ml 等的不同规 格冲剂液瓶的工作加工。可达成对处方药工作加工中安瓿瓶淋水、多普勒彩超心动图波刷洗、冲水、充 气、风干灭菌处理处理、待冷却、装灌、轧盖等加工工艺步凑的连动自动运行。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

特征:/characteristic

◆洗瓶机用于机诫手夹瓶，常用许多种型号规格的玻璃瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶选用水汽喷针往返跟踪定位添加图片办法，清晰结果好，节俭生物质能。并存在针架防震动部件，提高自己喷针添加图片塑料瓶子的较准度，减低断针状况发现；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶这个气水蒸汽管道、喷针完全性独力独立，预防了重叠污染问题，适合GMP技术规范想要；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶螺母前选配减慢块，有保养螺母，少碎瓶用Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶用整体上原装进口同时进行带，联接拨块推送内服液，执行固定可信度In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆真空烘箱用于红外线加温管，不锈钢板加温管加厚加温温差饱满性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆罐装轧盖机先选配瓷质泵、不锈钢板泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆罐装无瓶止灌，无瓶不轧盖功用。Pieces filling without bottle filling, no bottle no rolling function.◆整线分为PLC总调节、直流变频、触模屏调节新技术，进行动态平衡靠得住。触模屏可表示各电脑单机的进行感觉，各调节点的水流量、空气压力、风压差、温等表示，各旋钮感觉和发动机错误表示，发动机错误自我认识的诊断和发动机错误研究分析及解决形式。使一小部分加工期间可达到自己化调节，联线具三机自动化动态平衡安装，要确保加工均衡性靠得住。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.要根据老客户的要求，还可供选型：According to the needs of customers, but also available for selection:◆欧姆龙、施耐德开关、三菱数控整体、台达等知名品牌操作整体；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气压为、水温表及超声清洗波承载力、尘烟塑料再生颗粒、空气流速免费在线监测、警报器、记载、word打印设备。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、无菌室防护器设计。Mixer ORABS, CRABS, aseptic isolator system.

技能规格：technical parameters

适用性的规格Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
包装精密度较Filling accuracy(%)	≤ ± 2.5
装灌头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖达标率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
