妙用与介绍/ Brief Introduction：

本生孩子线由全自己理瓶机、滚筒设备式洗瓶机、无菌常温、干燥机、眼灵药罐装旋盖机、立柱式标贴纸超临界锅炉成，可来完成理瓶、水、气的难以清理、晒干及O3清洁、罐装、加塞、旋盖、标贴纸等繁琐流程，一般适用眼灵药十分他小运行量水溶液的联线生孩子，也可单机游戏自由运行。完成契合GMP必须。This production line consist of  Automatic Bottle Unscrambler,  Bottle Washing Machine, Tunnel Type Sterilization Drier, eyedrop filling machine, Vertical Labeling machine, can complete bottle sorting, water,and gas cleaning, drying and ozone disinfection, filling, plugging, capping, labeling, mainly used in eyedrops and other small doses of solution, also can be used single independently.　 Meet the GMP requirement.

作用/Characteristic：

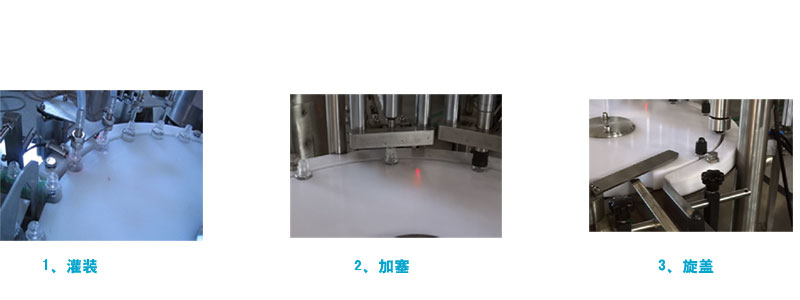

该机组设计的结构的有效，使用安全、灌装生产线高精准性高，具中国内地携手同这个行业领先情况。齐全合乎GMP原则。     眼灵药罐装旋盖机已经成为我机构的其次代货品，人机对战介面操控，胃排空泵罐装，由真空体吸机械制造手替换节流阀非常好的打塞，保持了不稳性和适合率。采取恒扭距旋盖，体现了无瓶不罐装、无塞不上盖，无瓶无塞可自动式停止时的系统。    It with reasonable structure, higher precision in filling, reaching the advanced level in domestic same business. Meet with requirement of GMP standard completely.eyedrop filling capping machine is a third generation product, human-machine interface operation, filling by peristaltic pump, replace air cylinder with vacuum drived manipulator for plugging, aquire higherstability and percent of pass. Constant torquecap screwing. No bottle no filling, no plug no capping and automatically stop if cap and plug is under-supply.

技术性参数设置/technical parameters：

常用年纪/Bottle size	10-20ml
生产销售力/Capacity	40-60瓶/分  70-120瓶/分 40-60/  70-120 bottles/min
自来水各种压力/ Hydraulic Pressure Mpa	0.3Mpa
使用的水量 /water consumption	0.5 m3/h
净化缩减自然空气压为 /Clean compressed air pressure	0.6-0.8Mpa
是否干净压缩成冷空气使用量/Clean compressed air consumption	300 L/min
供电/Voltage	380V/50Hz
工作效率/Power	5.5 kw
生育线总长/Dimension	11000*1500*1900mm
