功用与百科/Brief Introduction：

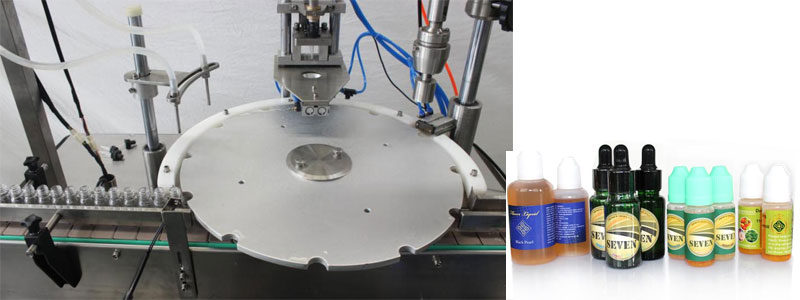

该机适宜于2-30ML多种多样在材质的环形扁形PVC或玻璃窗瓶的眼蓝药水装罐生产线.该机由高精密度凸轮轴构造精度等级构造给予精度等级等分盘位置上塞上盖;降速率凸轮轴构造齿轮变速箱给予旋盖头的上升下降;恒发动机功率旋盖;扭动泵剂量装罐生产线;触感屏抑制.无瓶不装罐生产线,没有加内塞,外盖.具位置准确度,齿轮变速箱平衡,保護瓶塞,剂量准.作业简易等特点。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

结构特征/Characteristic：

◆微PC电脑场景人物风格的设定在、装量精密、实际操作方面。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆设备主机电机转速可使用无级变速变频器调速器。the mainframe running speed is stepless frequency conversion.◆生育量定时酶联免疫法操控。the product quantity can be controlled. ◆好几种系统故障提示信息基本功能(如低压力表。无分装、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆主动关机基本功能，对指定单轨经常出现累计无罐装、无内塞原因可主动关机。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

技术水平技术指标/Main Technical Parameters：

适于要求Filling Volume	2-30ml
生产方式特性Productivity	♎30-60瓶/分  70-100瓶/分30-🔯60bottles/min    70-100bottles/min
灌装线高精准度Filling Precision	≤±1%
24v电源 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
主动上塞率Stoppering rate	≥99%
氧气源Air Supply	1.3 m3/h    0.4-0.8Mpa
电机功率 Power	2.0 kw
机器人毛重Weight	550 kg
形态寸尺Dimension	1800*1000*1500mm
