借款用途与简绍/Brief Introduction：

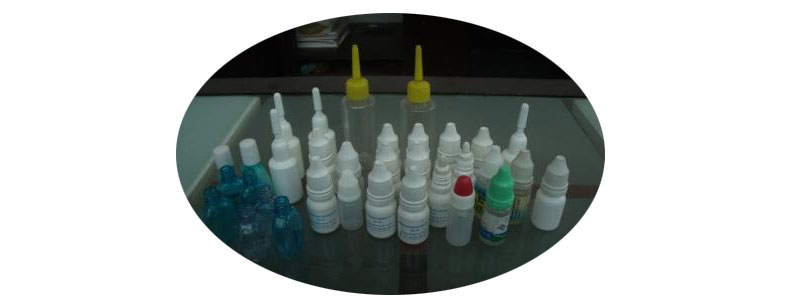

超声波焊接机支持于2-30ML种种不锈钢材质的正方形扁形PVC或夹丝玻璃罐的眼灵药装灌、网上烟油等小标准容量装灌.超声波焊接机由高高精准度凸轮轴平台测量范围平台出具测量范围等分盘确定上塞上盖;1度凸轮轴平台传动链系统出具旋盖头的起降;恒力矩旋盖;良好运动泵的测量装灌;接触屏管理.无瓶不装灌,不添加内塞,外盖.具确定明确,传动链系统稳定性,保护英文塑料瓶盖,的测量准.运作简单等优势：。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

结构特征/Characteristic：

◆微新电脑设置、装量透彻、的操作简便。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆主机箱转数可对其进行有级直流变频调压。the mainframe running speed is stepless frequency conversion.◆研发量智能化学发光法掌握。the product quantity can be controlled. ◆多重故章警告基本功能(如低压力。无分装、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆定时断电工作，对某一 轨道组件有反复无装灌、无内塞状况可定时断电。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

技术性因素/Main Technical Parameters：

适于型号Filling Volume	2-30ml
制造作用Productivity	30-60瓶/分  70-100瓶/分 30-60bottles/min  70-100bottles/min
包装精准度Filling Precision	≤±1%
供电 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
手动上塞率Stoppering rate	≥99%
汽源Air Supply	1.3 m3/h    0.4-0.8Mpa
耗油率 Power	2.0 kw
机设备重量Weight	550 kg
造型尽寸Dimension	1800*1000*1500mm
